MSI PRO H610M-E DDR4 mATX Motherboard
- Model: PRO H610M-E DDR4
- Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
- Supported RAM: 2x DDR4, Max 64GB
- Graphics Output: 1x HDMI, 1x VGA
- Features: 1x M.2 slot, Realtek RTL8111H Gigabit LAN
- PRO H610M-E DDR4

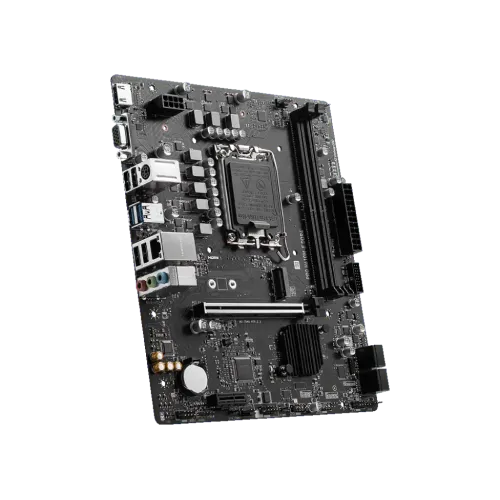

The MSI PRO H610M-E DDR4 12th Gen, 13th Gen & 14th Gen mATX Motherboard is a high-performance motherboard for the LGA 1700 socket that supports 12th/13th Gen Intel Core, Pentium Gold, and Celeron CPUs. This motherboard includes DDR4 memory compatibility, which can run at up to 3200(MAX) MHz. It also has Core Boost technology, a premium layout, and a digital power architecture, which improves performance and enables additional cores. Memory Boost technology, which produces pure data signals, ensures the highest performance, stability, and compatibility with the MSI PRO H610M-E DDR4 12th Gen & 13th Gen mATX Motherboard. It has PCIe 4.0, which allows for extremely rapid data transfers. Audio Boost technology provides studio-level sound quality to your ears, making it a perfect motherboard for gamers and music aficionados. The MSI PRO H610M-E DDR4 12th Gen & 13th Gen mATX Motherboard also has Steel Armor, which protects VGA cards from bending and EMI while improving performance, stability, and robustness. This motherboard is a good choice for individuals looking for a high-performance motherboard that can handle demanding programs and games, thanks to its sophisticated features and superb design.
- Supported CPU Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors, LGA 1700
- Chipset Intel H610 Chipset
- Form Factor mATX (9.3 in. x 7.9 in. / 23.6 cm x 20 cm)
- Audio Realtek ALC897 Codec, 7.1-Channel High-Definition Audio
- Expansion Slots 1x PCIe x16 slot (PCIe 4.0 x16 from CPU), 1x PCIe x1 slot (PCIe 3.0 x1 from H610 chipset)
- Memory Type DDR4
- Memory Slots 2
- Supported Memory Supports 1R 2133/2666/3200 MHz (JEDEC & POR), Dual-Channel mode, non-ECC, un-buffered memory
- Maximum Memory 64GB

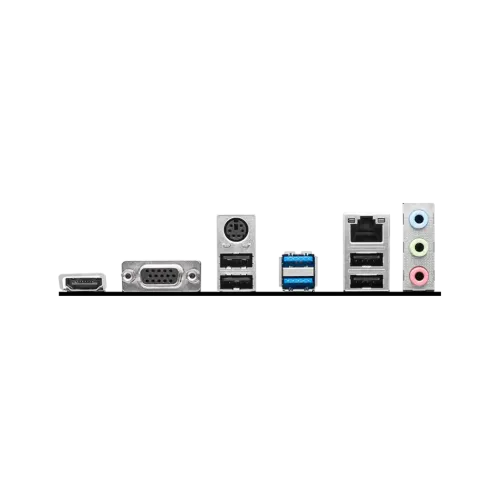

- Graphics 1x HDMI 1.4 with HDR (4K 30Hz), 1x VGA (2048x1536 @50Hz)
- USB Ports 1x USB 3.2 Gen 1 5Gbps connector (supports 2 ports), 2x USB 2.0 Type-A connectors (supports 4 ports)
- LAN Port Realtek RTL8111H 1Gbps LAN
- Storage 1x M.2 slot (PCIe 3.0 x4, 2242/2260/2280 devices)
- Internal Connectors 1x 24-pin ATX, 1x 8-pin +12V, 1x CPU fan, 2x system fan, 1x front audio, 2x system panel, 1x TPM module
- Special Features 1x 4-pin RGB LED connector, 4x EZ Debug LED
- Warranty 3 years
