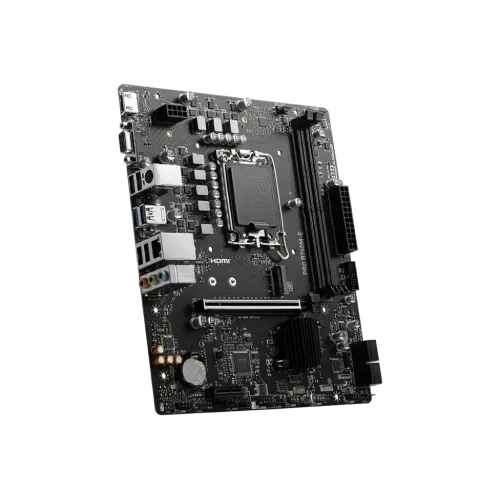

MSI PRO B760M-E 14TH GEN DDR5 MOTHERBOARD
- Model: B760M-E
- Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
- Supported RAM: 2x DDR5, Maximum Memory Capacity 96GB
- Graphics Output: 1x HDMI, 1x VGA
- Features: Realtek RTL8111H Gigabit LAN
- B760M-E
The MSI PRO B760M-E DDR5 m-ATX Motherboard will give an experience next-level computing performance. This powerful motherboard is made to handle the needs of modern computing. This motherboard is designed to accommodate Pentium Gold, Celeron, and 14th, 13th, and 12th generation Core CPUs with an LGA 1700 socket. It offers a flexible foundation for a variety of computer activities, including demanding programs and gaming. The B760M-E has enhanced memory capabilities thanks to its support for DDR5 memory, which has two DDR5 slots and a maximum memory capacity of 96GB. Because of the outstanding data transmission rates and responsiveness guaranteed by this, resource-intensive programs and multitasking are made possible. The primary characteristic of the B760M-E is connectivity. The motherboard has one HDMI connector, which allows for excellent graphics output and clear display graphics whether you're working on artistic projects or playing intense video games. Realtek RTL8111H Gigabit LAN is included to provide dependable and fast networking that can handle the demands of data transfer and online activities. The 7.1-Channel High Definition Audio offers immersive and crystal-clear sound quality, which will be appreciated by audio fans. The B760M-E's audio features improve your whole experience whether you're playing games, viewing movies, or having a video conference. With its design catering to both enthusiasts and pros, the MSI PRO B760M-E DDR5 mATX Motherboard offers a strong base for your computer setup by integrating performance, connection, and audio features. With this feature-rich motherboard that achieves the ideal balance between dependability and high-performance capabilities, you can enhance your computer experience.
In Bangladesh, you can get the original MSI PRO B760M-E DDR5 m-ATX Motherboard From Tech Minds. We have a large collection of the latest MSI Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Tech Minds Shop to get yours at lowest price. The MSI PRO B760M-E DDR5 m-ATX Motherboard comes with 3 years warranty.
- Supported CPU Support Intel Core 14th/13th/12th Gen Processors, Intel Pentium Gold and Celeron Processors, LGA 1700
- Chipset INTEL B760
- Form Factor mATX (200mm x 236.16mm)
- Audio Realtek ALC897 Codec, 7.1-Channel High Definition Audio
- Expansion Slots 1x PCI-E x16 slot (PCIe 4.0 x16), 1x PCI-E x1 slot (PCIe 3.0 x1)
- M.2 Socket 1x M.2
- Memory Type DDR5
- Memory Slots 2x DIMM
- Supported Memory DDR5 6400+(OC) to 4800(JEDEC), 1DPC 1R Max speed up to 6400+ MHz, 1DPC 2R Max speed up to 5600+ MHz
- Maximum Memory 96GB
- Graphics 1x HDMI 1.4 (4K 30Hz), 1x VGA

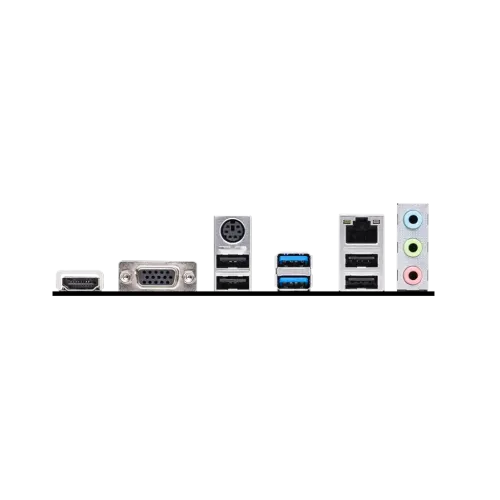

- USB Ports 4x USB 2.0 (Rear), 4x USB 2.0 (Front), 2x USB 3.2 Gen1 Type A (Rear), 2x USB 3.2 Gen1 Type A (Front)
- LAN Port Realtek RTL8111H Gigabit LAN
- Storage 1x M.2 (PCIe 4.0 x4 / SATA mode, 2280/2260/2242), 4x SATA 6G
- RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- Internal Connectors 1x ATX_PWR, 1x CPU_PWR, 1x CPU Fan, 2x System Fan, 2x Front Panel, 1x Front Audio, 1x RGB, 4x USB 2.0, 2x USB 3.2 Gen1, 1x TPM 2.0
- Special Features 1x RGB LED connector
- Warranty 3 years
