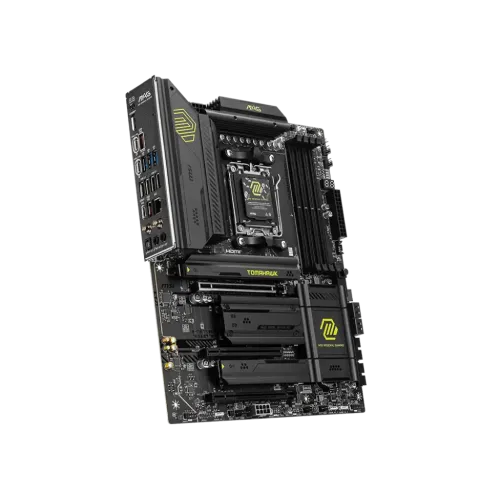

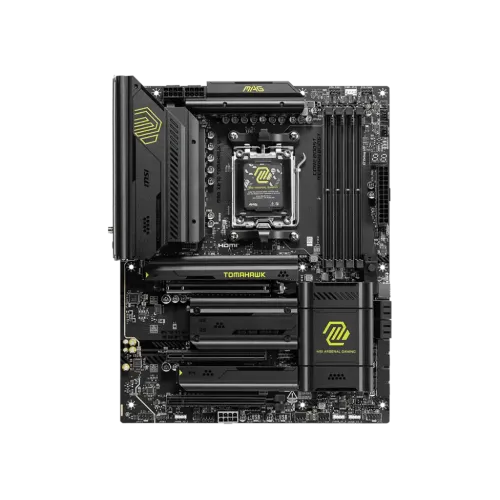

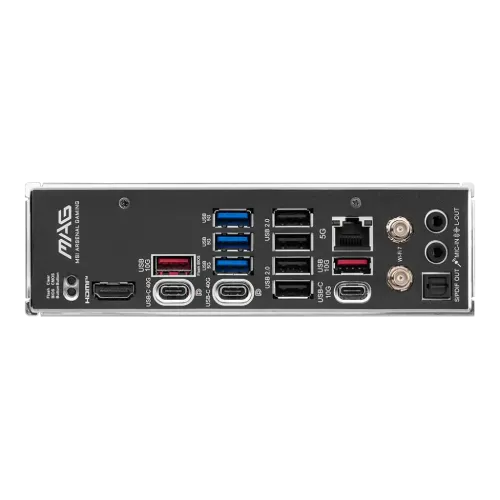

MSI MAG X870 TOMAHAWK WIFI AM5 Motherboard
- Model: MAG X870 TOMAHAWK WIFI
- Supported CPU: Ryzen 9000/8000/ 7000 Series Processors for Socket AM5
- Supported RAM: 4x DDR5 8400+(OC) MHz
- Graphics Output: 1x HDMI, 2x Type-C Display Port
- Features: Realtek 8126-CG 5G LAN, Wi-Fi 7
- MAG X870 TOMAHAWK WIFI
The MSI MAG X870 TOMAHAWK WIFI AM5 Motherboard is a high-performance motherboard designed to support AMD Ryzen 9000, 8000, and 7000 series desktop processors, providing an exceptional foundation for gaming and professional use. It supports DDR5 memory with dual-channel DDR5 8400+ MT/s (overclocked), ensuring lightning-fast performance for even the most demanding applications. With an advanced 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, and MSI's Core and Memory Boost technologies, this motherboard offers powerful and stable performance. Its 8-layer PCB made of 2oz thickened copper and server-grade materials ensures reliability and durability. The Frozr Guard cooling solution, which includes an extended heatsink, MOSFET thermal pads rated for 7W/mK, and additional choke thermal pads, keeps your system running cool even under heavy loads. The EZ M.2 Shield Frozr II enhances thermal performance for M.2 SSDs. This motherboard also includes EZ DIY features such as the EZ M.2 Clip II, EZ PCIe Release, and EZ Antenna, making building your PC a breeze. For the ultimate gaming experience, the Lightning Fast Game Experience is delivered through a PCIe 5.0 slot and Lightning Gen 5 x4 M.2. Connectivity is enhanced with Ultra Connect, featuring USB4 and 5G LAN with Wi-Fi 7, offering secure, stable, and high-speed networking and data transmission capabilities, ideal for professional and multimedia use. Audio Boost 5 ensures studio-grade sound quality, providing an immersive audio experience for gaming enthusiasts.
In Bangladesh, you can get original MSI MAG X870 TOMAHAWK WIFI AM5 Motherboard From Tech Minds. We have a large collection of latest MSI Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Tech Minds Shop to get yours at lowest price. The MSI MAG X870 TOMAHAWK WIFI Motherboard comes with 3 years warranty.
- Supported CPU Supports AMD Ryzen 9000/8000/7000 Series Desktop Processors, Socket AM5
- Chipset AMD X870
- Form Factor ATX (304.8mm x 243.84mm)
- Audio Realtek ALC4080 Codec, 7.1-Channel USB High-Performance Audio, Supports up to 32-bit/384kHz playback on the front panel, Supports S/PDIF output
- Expansion Slots 3x PCI-E x16 slot: PCI_E1 Gen PCIe 5.0 x16 (From CPU), PCI_E2 Gen PCIe 3.0 x1 (From Chipset), PCI_E3 Gen PCIe 4.0 x4 (From Chipset)
- Memory Type DDR5
- Memory Slots 4x UDIMM
- Supported Memory Support DDR5 8400+(OC) to 4800(JEDEC) MT/s, Supports AMD POR Speed and JEDEC Speed, Supports Memory Overclocking and AMD EXPO, Supports Dual-Channel mode, Supports Non-ECC, Un-buffered memory
- Maximum Memory 256GB
- Graphics 1x HDMI 2.1 FRL (8K 60Hz), 2x Type-C DisplayPort (USB4 port, DisplayPort 1.4, 4K 60Hz)
- LAN Port Realtek 8126-CG 5G LAN
- Wireless Wi-Fi 7 (Pre-installed), MU-MIMO TX/RX, 2.4GHz/5GHz/6GHz (320MHz) up to 5.8Gbps, Bluetooth 5.4
- Storage 4x M.2: M.2_1 PCIe 5.0 x4 (22110/2280), M.2_2 PCIe 5.0 x4 (2280/2260), M.2_3 PCIe 4.0 x2 (2280/2260), M.2_4 PCIe 4.0 x4 (2280/2260)
- RAID Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
- Internal Connectors 1x ATX_PWR, 2x CPU_PWR, 1x PCIE_PWR, 1x CPU Fan, 1x Combo Fan, 6x System Fan, 2x Front Panel, 1x Front Audio, 3x ARGB, 1x RGB, 4x USB 2.0, 4x USB 5Gbps, 1x USB 20Gbps Type C, 1x TPM 2.0
- Special Features 4x EZ Debug LED, 1x EZ Digit Debug LED
- Warranty 3 Years
