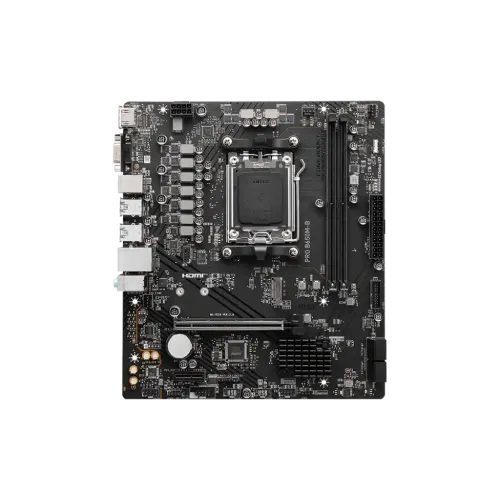

MSI PRO B650M-B DDR5 AMD AM5 m-ATX Motherboard
- Model: PRO B650M-B
- Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
- Supported RAM: 2x DDR5, up to 6800+(OC) MHz
- Graphics Output: 1x HDMI, 1x VGA
- Features: 2.5G LAN
- PRO B650M-B
The MSI PRO B650M-B DDR5 AMD AM5 m-ATX Motherboard meets the needs of modern computing with cutting-edge technology and adaptability. With its unique design to support the most recent Ryzen 7000 and 8000 Series Processors for Socket AM5, this motherboard guarantees peak performance, which makes it a great option for people doing a variety of computer jobs, such as professional content production or gaming. The motherboard claims compatibility for up to 2x DDR5 RAM modules, allowing users to harness memory speeds of 6800+ MHz (when overclocked). This feature meets the demands of resource-intensive programs, multitasking, and high-performance computing by offering a significant increase in memory bandwidth. With 1x HDMI and 1x VGA, the MSI PRO B650M-B provides flexible visual connectivity that makes it easy to set up multiple displays and produces high-quality graphics output. For users who need immersive graphics or increased productivity with numerous displays, this function is very helpful. The addition of a 2.5G LAN to the motherboard significantly enhances its networking capabilities and guarantees dependable and quick data transfer. This offers a smooth and responsive online experience, making it especially useful for network-intensive activities like online gaming and multimedia streaming.The MSI PRO B650M-B DDR5 AMD AM5 mATX Motherboard provides a solid base for your system, regardless of your needs as an avid gamer, creative professional, or multitasker. This motherboard meets the needs of the ever-changing computing landscape of today by delivering an improved computing experience with its combination of performance, networking choices, and innovative features.
- Supported CPU Supports AMD Ryzen 9000/8000/7000 Series Desktop Processors, Socket AM5
- Chipset AMD B650
- Form Factor mATX (243.84mm x 243.84mm)
- Audio Realtek ALC897 Codec, 7.1-Channel High Definition Audio
- Expansion Slots 1x PCI-E x16 slot (PCIe 4.0 x16 from CPU), 1x PCI-E x1 slot (PCIe 3.0 x1 from Chipset)
- Memory Type DDR5
- Memory Slots 2
- Supported Memory 6800+(OC) to 4800(JEDEC) MHz
- Maximum Memory 96GB
- Graphics 1x HDMI 2.1 (4K 60Hz), 1x VGA (2048x1536 @50Hz)
- USB Ports 2x USB 2.0 (Rear), 4x USB 2.0 (Front), 4x USB 3.2 Gen1 Type A (Rear), 2x USB 3.2 Gen1 Type A (Front)
- LAN Port Realtek RTL8125BG 2.5G LAN
- Storage 1x M.2 (PCIe 4.0 x4, 2280/2260 devices), 4x SATA 6G
- RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
- Internal Connectors 1x ATX_PWR, 1x CPU_PWR, 1x CPU Fan, 2x System Fan, 2x Front Panel, 1x Front Audio, 1x ARGB, 1x RGB, 4x USB 2.0, 2x USB 3.2 Gen1, 1x TPM 2.0
- Warranty 3 Years
