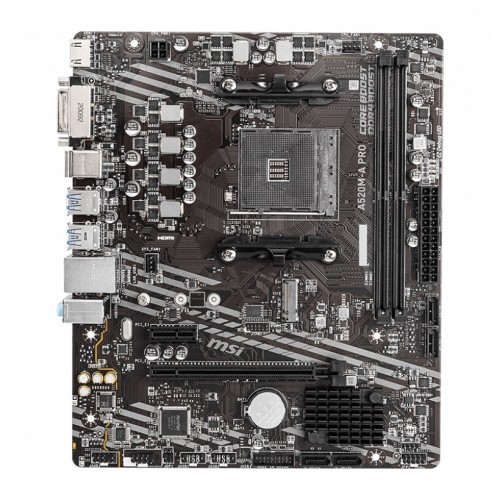

MSI A520M-A Pro AM4 AMD Micro-ATX Motherboard
- Model: MSI A520M-A Pro
- AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
- PCB with 2OZ Thickened Copper
- Supports up to 4600(OC) MHz RAM
- Core Boost, Turbo M.2 & Audio Boost
- MSI A520M-A Pro
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity. MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you to check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically. MSI PRO Series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier. An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking. MSI OC LAB does not merely work hard on extreme overclocking. Compared to the A320 motherboard memory A-XMP profile, MSI does have great improvement in performance and efficiency for A520 motherboards. Easy to enable A-XMP profile with auto power settings to get the best memory speed and stability. Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU but also creating the perfect conditions for your CPU overclocking.
- Supported CPU AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
- Chipset AMD B520
- Form Factor Micro-ATX (9.3 in. x 7.9 in. / 23.6 cm x 20 cm)
- Expansion Slots 1x PCIe x16 slot, 1x PCIe 3.0 x1 slot
- M.2 Socket 1x M.2 slot (PCIe 3.0 + SATA, 2242/2260/2280 devices)
- Memory Type DDR4, Dual-channel
- Memory Slots 2x DDR4 memory slots
- Supported Memory DDR4 1866-4600+ MHz, Supports non-ECC UDIMM, ECC UDIMM (non-ECC mode), un-buffered memory, A-XMP OC MODE
- Maximum Memory 64GB
- Graphics 1x HDMI 2.1 (4096x2160 @60Hz), 1x DVI-D (1920x1200@60Hz)
- Max Shared Memory 16GB
- USB Ports 4x USB 3.2 Gen1 Type-A (Rear), 2x USB 3.2 Gen1 (internal), 6x USB 2.0 (2 Rear, 4 internal)
- LAN Port Realtek RTL8111H Gigabit LAN
- Storage 4x SATA 6Gb/s, 1x M.2 slot
- Audio Realtek ALC892 Codec, 7.1-Channel High Definition Audio
- RAID Supports RAID 0, RAID 1 and RAID 10 for SATA, Supports RAID 0 and RAID 1 for M.2 NVMe
- Internal Connectors 1x 24-pin ATX, 1x 4-pin 12V, 4x SATA, 1x M.2, 1x USB 3.2 Gen1, 2x USB 2.0, 1x CPU Fan, 1x System Fan, 1x Front Audio, 1x TPM
- Warranty 03 Years Warranty
